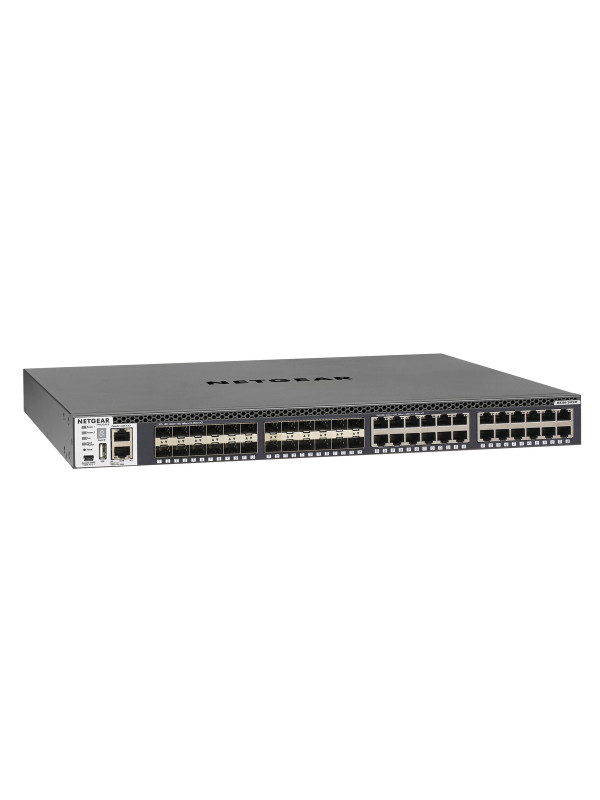

NETGEAR M4300-24X24F Managed L2/L3/L4 10G Ethernet (100/1000/10000) 1U Black Network Switch

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services

- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Product Specifics

Model M4300-24X24F Form Factor 1U LED Indicators Activity, Power, Speed Security Algorithms HTTPS, SNMP, SSH Mean Time Between Failures (MTBF) 133176 h Product Color Black Internal Memory 1024 MB Operating Temperature (T-T) 0 - 50 °C Storage Temperature (T-T) -20 - 70 °C Operating Relative Humidity (H-H) 0 - 90% Storage Relative Humidity (H-H) 0 - 95% Operating Altitude 0 - 118110.2" (0 - 3000 m) Non-operating Altitude 0 - 118110.2" (0 - 3000 m) Cables Included AC, LAN (RJ-45), Mini-USB USB 2.0 Ports Quantity 1 Power Consumption (max) 161 W Processor Frequency 800 MHz Flash Memory 256 MB Store-and-forward Y Jumbo Frames Support Y Jumbo Frames 12000 Switching Capacity 960 Gbit/s Packet Buffer Memory 56 MB MAC Address Table 128000 entries Number Of Static Routes 64 Latency (10 Gbps) 2.39 µs Forwarding Rate 714 Mpps Rack Mounting Y Safety CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 Stackable Y Electromagnetic Compatibility CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 Switch Type Managed Switch Layer L2/L3/L4 Quality Of Service (QoS) Support Y Web-based Management Y ARP Inspection Y Multicast Support Y Number Of Multicast Groups Filtered 4000 Networking Standards IEEE 802.3ad, IEEE 802.3az 10G Support Y Flow Control Support Y Link Aggregation Y Virtual LAN Features Private VLAN Auto-negotiation Y Port Mirroring Y Rate Limiting Y VLAN Support Y Number Of VLANs 4000 IP Routing Y Cable Types Supported Cat5, Cat5e, Cat6, Cat7 Auto-sensing Y Heat Dissipation 133176 BTU/h Fiber Ethernet Cabling Technology 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR Rack Mount Kit Y Rubber Feet Y Resource CD Y Built-in Processor Y Noise Level 35.8 dB Basic Switching RJ-45 Ethernet Ports Quantity 24 Basic Switching RJ-45 Ethernet Ports Type 10G Ethernet (100/1000/10000) Console Port RJ-45/Mini-USB Fiber Optic Connector SFP+ SFP+ Module Slots Quantity 24 Power Supply Included Y Power Over Ethernet (PoE) N Access Control List (ACL) Y DHCP Features DHCP server, DHCP client SSH/SSL Support Y BPDU Filtering/protection Y
