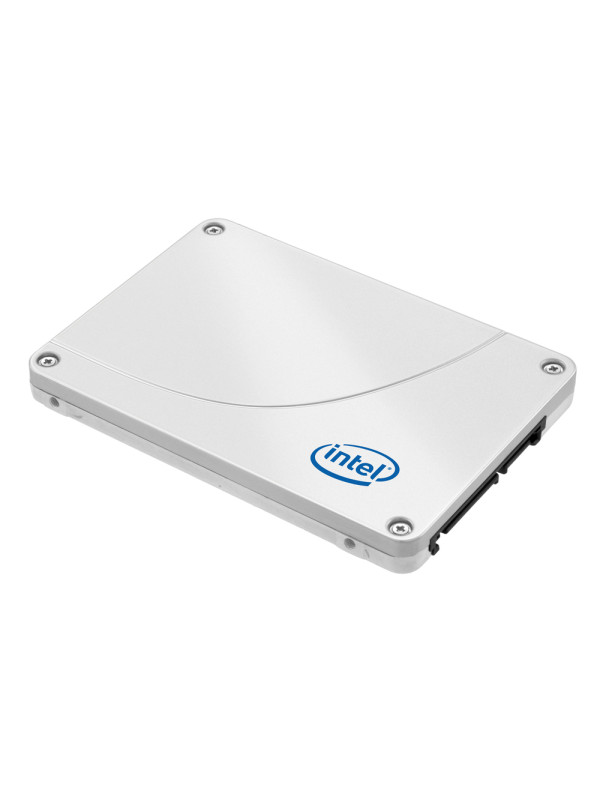

D3 Intel® SSD -S4520 Series (240GB, 2.5in SATA 6Gb/s, 3D4, TLC) Internal Solid State Drive

Out of stock
SKU
9HU504
$79.25



D3 ® SSD -S4520 Series (240GB, 2.5in SATA 6Gb/s, 3D4, TLC). SSD capacity: 240 GB, SSD form factor: 2.5", Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

Product Specifics

ProductFamily D3
Model Intel® SSD D3-S4520 Series (240GB, 2.5in SATA 6Gb/s, 3D4, TLC)
SSD Form Factor 2.5"
SSD Capacity 240 GB
Interface Serial ATA III
Memory Type TLC 3D NAND
Component For Server/workstation
Hardware Encryption Y
Security Algorithms 256-bit AES
Data Transfer Rate 6 Gbit/s
Mean Time Between Failures (MTBF) 2000000 h
NVMe N
Random Read (4KB) 44000 IOPS
Random Write (4KB) 15500 IOPS
Internal Memory Type SATA 3.0 6Gb/S
Operating Temperature (T-T) 0 - 70 °C
Non-operating Vibration 3.13 G
Power Consumption (idle) 1 W
Processor Family Intel SSD D3
Power Consumption (active) 2.3 W
Maximum Operating Temperature 70 °C
Operating Vibration 2.17 G
Launch Date Q3'21
Random Read (100% Span) 44000 IOPS
Random Write (100% Span) 15500 IOPS
End-to-End Data Protection Y
Enhanced Power Loss Data Protection Technology Y
SSD Temperature Monitoring Y
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) G162706
Use Conditions Server/Enterprise
SSD Endurance Rating 1.0 PBW
SSD Shock 1000G,0.5ms
Sequential Reading 470 MB/s
Sequential Writing Speed 233 MB/s
Status Launched
More Information
SKU9HU504
Weight1.000000
Length15 in
Width12 in
Height8 in
brandIntel
MPNSSDSC2KB240GZ01
UPC0735858482714
ModelSSDSC2KB240GZ01
Product IDSSDSC2KB240GZ01
ConditionNew
Warranty1-YEAR
AvailabilityOutofStock
Free Shipping DiscountNo
